Actaphase 60 Phase Change Thermal Interface Material
Actaphase 60 is cost effective non-isolated high performance phase-change material which utilizes an aluminum substrate to act as a thermally conductive carrier in order to deliver a uniform thickness coating of Actaphase 60 phase-change thermal compound on both sides. Actaphase 60 offers efficient thermal transfer by phase-changing during normal device operating temperatures while maintaining a uniform bond line thus driving out the air and adjusting for any surface imperfections or flatness conditions that may exist across the interface.
Being able to manufacture Actaphase 60 in multiple compound thicknesses as well as aluminum substrate thicknesses allows us to meet a wide range of electronic cooling applications ranging from Power Electronics, Transistors, Diodes, Microprocessors or any type of heat generating isolated power device requiring efficient and reliable thermal transfer into a heat sink/case sink.
ActaPhase 60 Features and Benefits
- Aluminum foil substrate carrier
- Non-Dielectric Thermal Pad | 60C Phase Change Temperature
- Easy to handle - drop in place thermal pad
- Low thermal impedance
- Thixotropic - silicone free compound design
- Mulitple foil substrate and coating thickness options
- Excellent replacement for thermal greases
- 100% surface, discrete or edge tack back options available
- Single side aluminum foil coating options available
- Available in rolls, sheets or die cuts
Foil Substrate Thickness
- AL2 (0.051mm) AL3 (0.076mm) AL5 (0.127mm)
Coating Thickness (per side)
L05 (0.013mm) L10 (0.025mm) L15 (0.038mm) L20 (0.051mm)
Format: Aluminum foil substrate coated both sides with a uniform thickness of phase change compound.

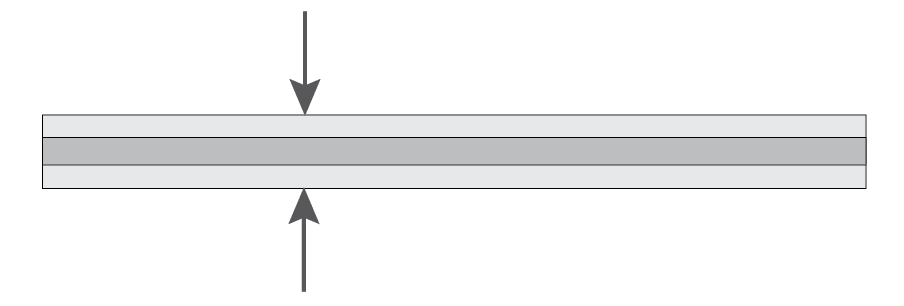

Standard Cross Section
