THERMALLY CONDUCTIVE ADHESIVE FILMS

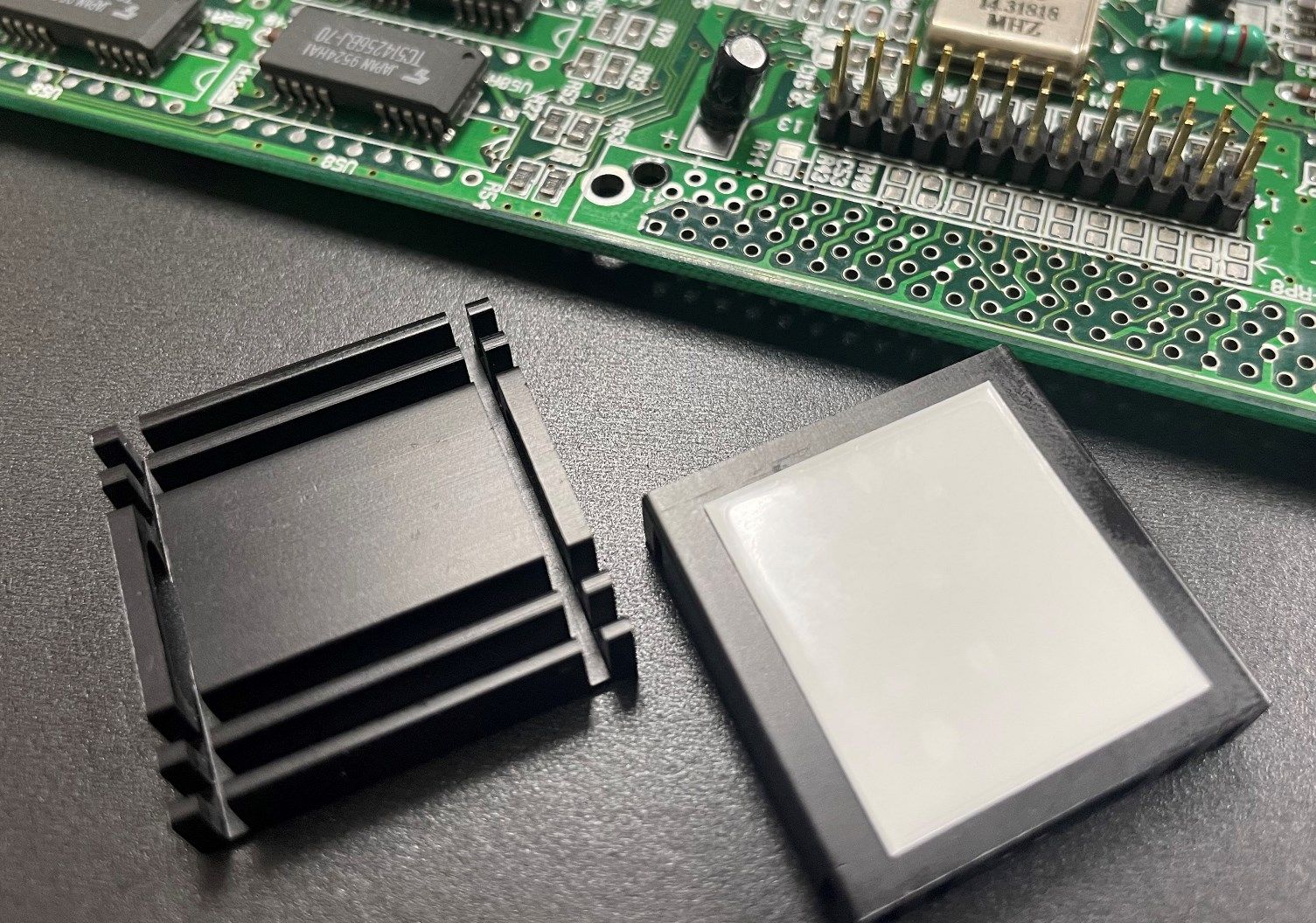

FastelTack T20 and T20-DC material is a thermally conductive pressure sensitive adhesive that offers thermal management and quick stick adhesion for applications such as IC Chips, Heat Sinks, LED/Heat Sink Mount and Battery Attachment.
FastelTack T20 offers a high degree of substrate conformability and adhesion to acheive excellent thermal performance even at hand applied pressures. T20 eliminates the need for fasteners or clipping mechanisms due to its quick stick, long term adhesion characteristics.
FastelTack T20-DC (double coated) or T20-SC (single side coated) offers higher film thicknesses through the use of a range of substrates from polyimide film to metal foils.
Thermally Conductive Adhesive Features and Benefits
- Pressure sensitive adhesive format
- Short assembly time (quick stick)
- Eliminates the need for fasteners or clip mount mechanisms
- Soft and conformable adhesive
- Free standing adhesive film or substrate coated
- Excellent adhesion against a variety of surfaces
- Bonds to metals (aluminum, copper, anodized surfaces)
- Bonds to PCB surfaces (FR4)
- Bonds to plastic films (polyimide film, PET films)
- Dielectric adhesive film solution
- Silicone-Free and Halogen Free
- Available in rolls, sheets, die cut invidiuals or die cut reels
Thermal Adhesive Film (Unsupported)
FastelTack T20
Type: Pressure Sensitive AdhesiveSubstrate: none (unsupported)Adhesive Thickness: 0.051mm
Single or Double Coated Foil (non-dielectric substrate)
FastelTack T20-AL
Type: Pressure Sensitive Adhesive
Adhesive Thickness: 0.051mm
Substrate: Aluminum Foil
Substrate Thickness:
0.025mm to 0.13mm
Single (SC) or Double (DC) Coated
FastelTack T20-CU
Type: Pressure Sensitive Adhesive
Adhesive Thickness: 0.051mm
Substrate: Copper Foil
Substrate Thickness:
0.025mm to 0.13mm
Single (SC) or Double (DC) Coated
FastelTack T20-GF
Type: Pressure Sensitive Adhesive
Adhesive Thickness: 0.051mm
Substrate: Graphite Heat Spreader
Substrate Thickness:
0.025mm to 0.13mm
Single (SC) or Double (DC) Coated
Single or Double Coated Foil (dielectric substrate)
FastelTack T20-K
Type: Pressure Sensitive AdhesiveAdhesive Thickness: 0.051mmSubstrate: Kapton MTSubstrate Thickness:0.025mm to 0.076mmSingle (SC) or Double (DC) Coated
FastelTack T20-KP
Type: Pressure Sensitive Adhesive
Adhesive Thickness: 0.051mm
Substrate: Kapton MT + (Plus)
Substrate Thickness:
0.038mm to 0.051mm
Single (SC) or Double (DC) Coated
Request Sample or Technical Data Sheet
